[CS] Instruction Set Completeness

To be Completeness . . .

→ A computer should have a set of instructions so that the user can construct machine language programs to evaluate any function that is known to be computable.



① - Arithmetic / Logical

② - Data transfor (including I/O)

③ - Contorl Tranfer





① Arithmetic / Logical

→ Modify Data value



1) Integer arithmetic operations

+, -, *, %, ++, -- etc.



Note - 1) What are the essential elements?

(ADD, SUB, MUL, DIV)

→ ADD and Compliment

(Sub, 1+(-1)

Mul, 2+2+2

Div, use subtraction)



Note - 2) How to use floating point arithmetic operation

→ F.P. operations can be emulated by integer operations.





2) Logical operations

AND (&&)

True and Trud -> True

True and False -> False

False and True -> False

False and False -> False



OR (||)

True and Trud -> True

True and False -> True

False and True -> True

False and False -> False



Bitwise AND(&)

0001

0101

------------

0001



Bitwise OR (|)

0001

0101

------------

0101



Complement(')

0101

------------

1010





Note) Smallest set ?

case 1 - AND and NOT

case 2 - OR and NOT





3) Shift instructions

Logic shift, Arithmetic shift, Rotate

1010

↙↙↙↙

----------

010□



Decide which bits to fill in the square.



Logic shift -> 0

Rotate -> overflow number





4) Floating point arithmetic operations

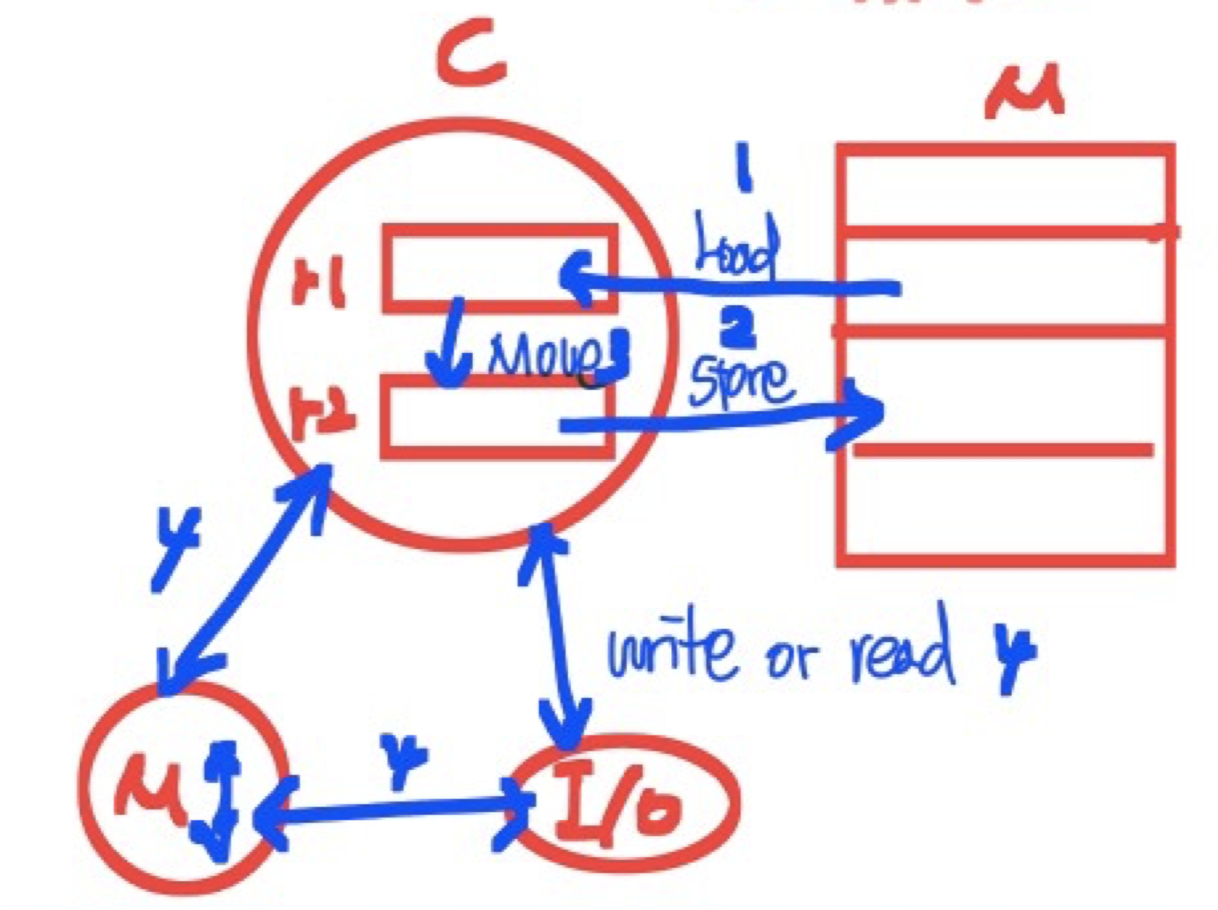

② Data transfor (including I/O)

→ Copy Data from one place to another

1) Load

Memory to register



2) Store

Resiter to memory



3) Move

Copy from register to register



4) Special instructions

Betwwen I/O Device and processor







Note) Memory mapped I/O

Instead of creating a new instruction, it allocates an address space in memory to the I/O device.







③ Contorl Tranfer

→ Jump or Branch

1) conditional branch instruction

Ex) BEQ   A,  B,  C

2) Unconditional branch instruction

Ex) Jump A

3) Subroutine calls and returns instructions

4) Software interrupt instructions

(Hardware interrupts)

5) Halt instructions to stop

Ex) int main() {  }





Note) Instruction Orthogonality - Instructions are orthogonal if they do not overlap, or perform same function









◡̈
