[MIPS] 5 Step of Pipelining 본문
728x90

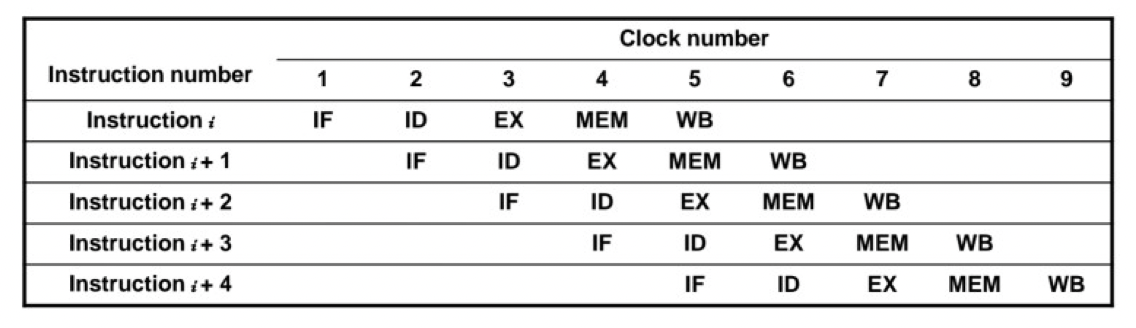

Pipelining Step
① Instruction fetch step (IF)
② Instruction decode/register fetch step (ID)
③ Execution/effective address step (EX)
④ Memory access (MEM)
⑤ Register write-back step (WB)
Q) 어떻게 만들어졌나?
A) 같은 instruction 길이, 조금의 instruction format,memory access는 조금만.

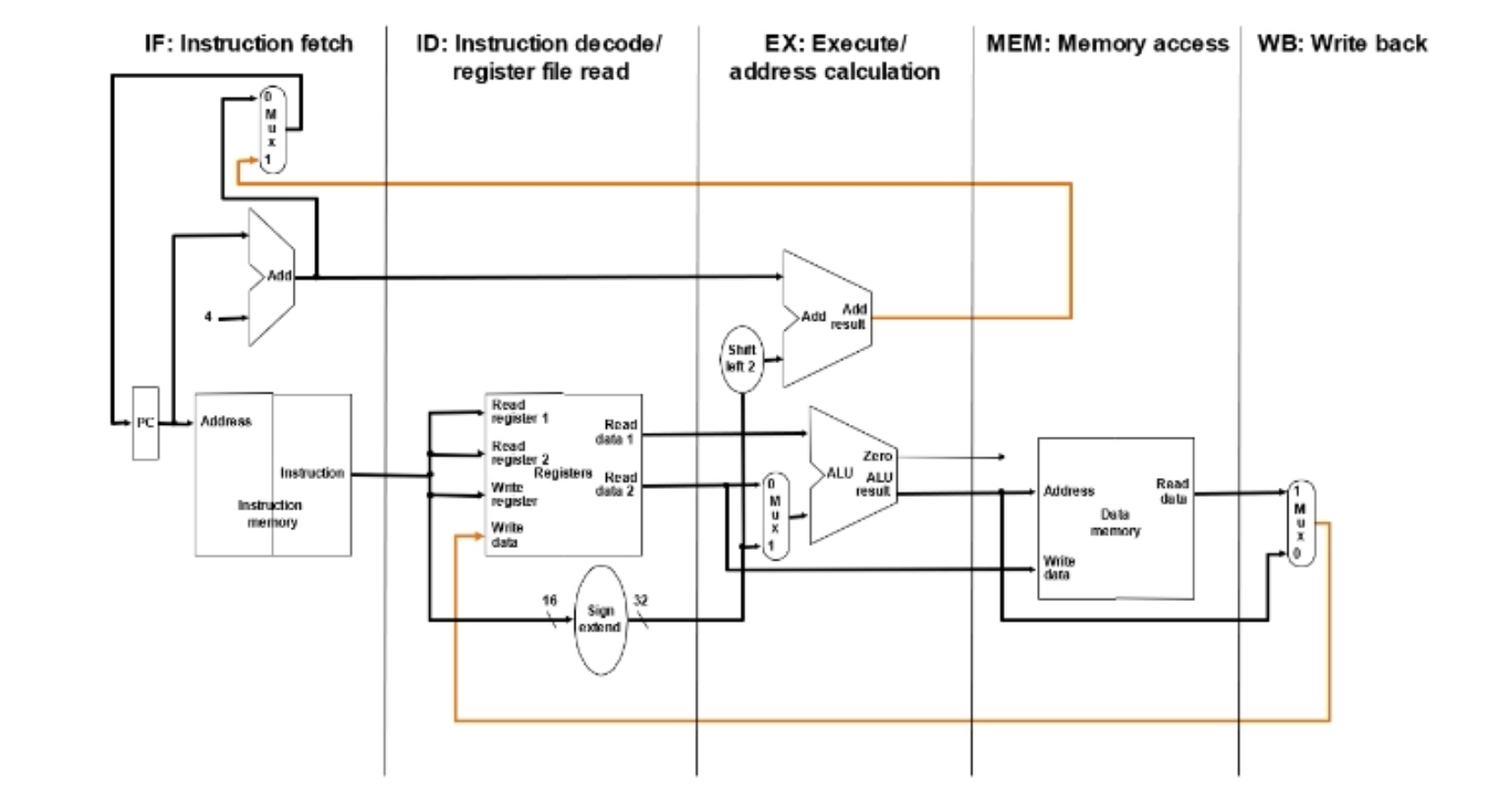

5개의 step을 그림으로 살펴보겠습니다.
• Single clock datapath를 기본으로 제작했습니다.
• Single clock datapath와 다른 점은 중간중간 register가 존재한다는 점입니다.
◡̈
