[MIPS] Procedure Call using Stack 본문
728x90
Procedure call을 할 때 stack을 사용합니다.

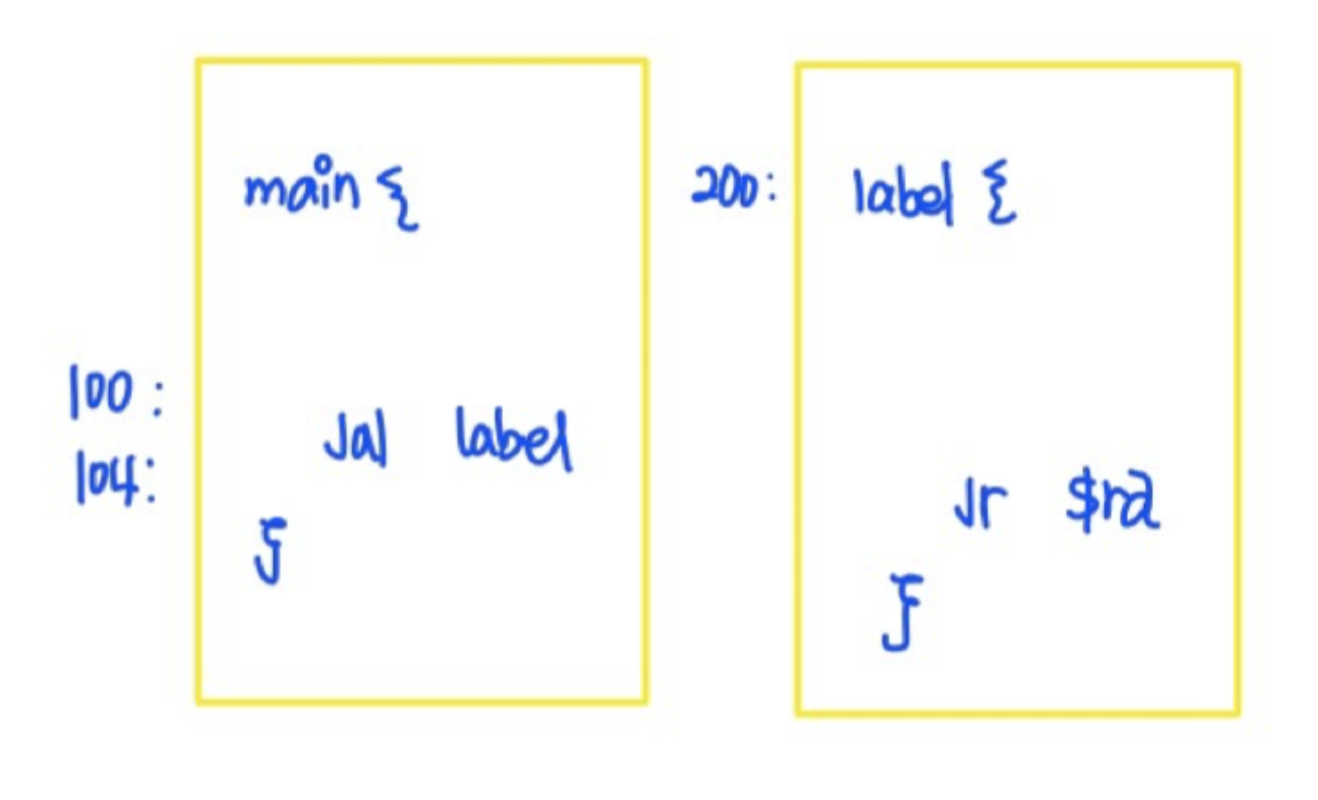

✓ main 함수는 caller
✓ label 함수는 callee
ʷʰʸ
main 함수에서 $s0 register을 사용하다가 jal instruction을 수행해서
label 함수로 갔을 때 label 함수도 $s0 register을 사용할 수도 있습니다.
이때, main 함수에서 $s0 값을 저장하지 않고 label 함수로 넘어간다면 main 함수의 $s0 값이 사라지게 됩니다.
그래서 caller 함수에서는 stack register의 값을 push하고 pop 할 수 있습니다.

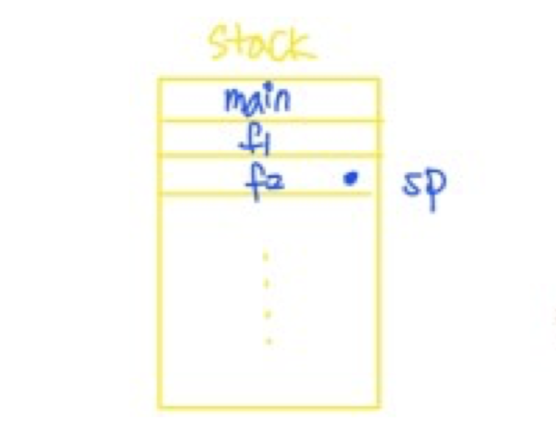

위와 같이 register의 값을 저장하기 위해 stack을 사용합니다.
✓ Stack poiner ($sp)로 어느 stack의 위치가 active한지 알려줍니다.
✓ Spilling register의 의미는 function에서 사용했던 register를 보관한다는 뜻입니다.
✓ reserved - push value (in caller procedure)
✓ restored - pop value (in caller procedure)
note) stack - last in first out
◡̈
